| MOQ: | 1 |
| Cena £: | US $18000.00 - 20000.00/ |
| standardowe opakowanie: | Ścisła ochrona |
| Okres dostawy: | 90-150 dni |
| Metoda płatności: | T/t |
| Wydajność dostaw: | 500 jednostek rocznie |

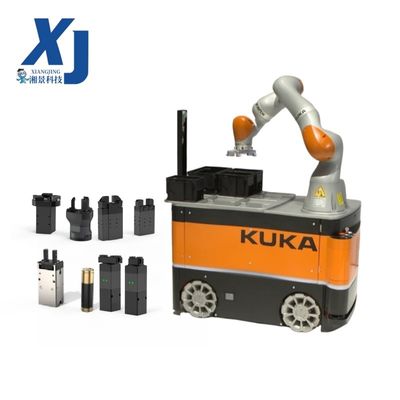

The KUKA LBR iiwa Collaborative Robot is a pioneering 7-axis cobot designed for safe, intuitive human-robot interaction in dynamic production environments. With integrated torque sensors in all joints, it detects contact and responds instantly, enabling barrier-free collaboration without safety fencing. Available in 7 kg and 14 kg payload variants, the LBR iiwa offers 800 mm or 820 mm reach for tasks like assembly, machine tending, and quality inspection. Powered by KUKA Sunrise.OS, it supports easy programming via lead-through teaching and integrates with Industry 4.0 systems, making it ideal for automotive, electronics, and research applications.
| Parameter | 7 kg Model | 14 kg Model |
|---|---|---|
| Payload | 7 kg | 14 kg |
| Reach | 800 mm | 820 mm |
| Degrees of Freedom | 7 | 7 |
| Repeatability | ±0.1 mm | ±0.1 mm |
| Maximum Speed | 1 m/s | 1 m/s |
| Weight | 23 kg | 29 kg |
| Protection Rating | IP54 | IP54 |
| Operating Temperature | 0°C to 45°C | 0°C to 45°C |
| Controller | Sunrise.OS | |
| Certifications | ISO 10218-1, CE | ISO 10218-1, CE |
The KUKA LBR iiwa Collaborative Robot is suited for safe, flexible automation tasks:
Torque sensors in all joints detect contact and stop movement instantly.
The 14 kg model has a higher payload and slightly longer reach for heavier tasks.
Yes, lead-through teaching allows hand-guiding the robot to learn paths.
23 kg (7 kg model), making it easy to move and install.
IP54 protection suits indoor industrial use; optional covers for light outdoor.
For more information about the KUKA LBR iiwa Collaborative Robot, pricing, or to request a demo, contact our team:
| sveta@gongboshi.com |
| +8613916209596 |
